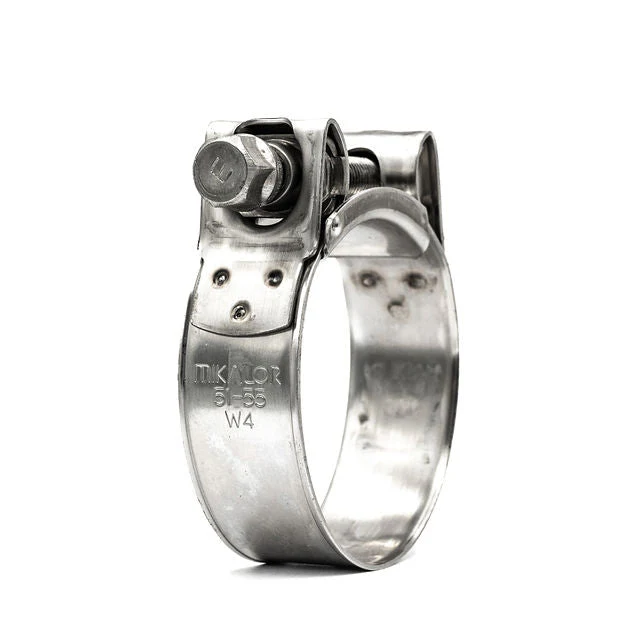

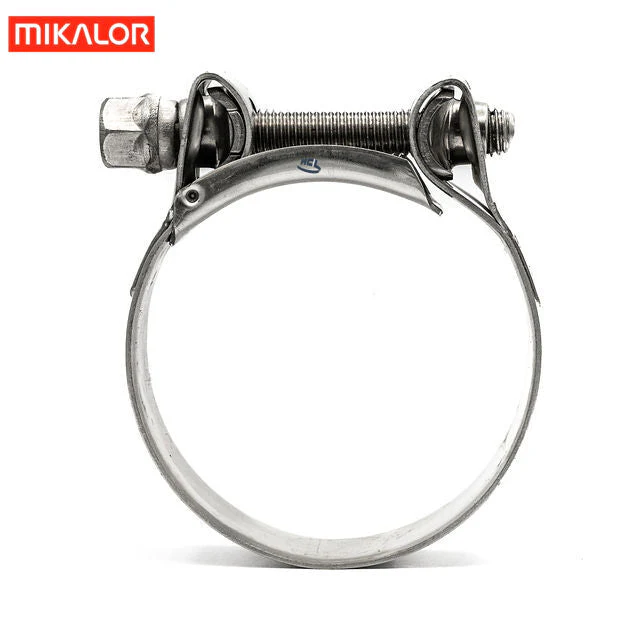

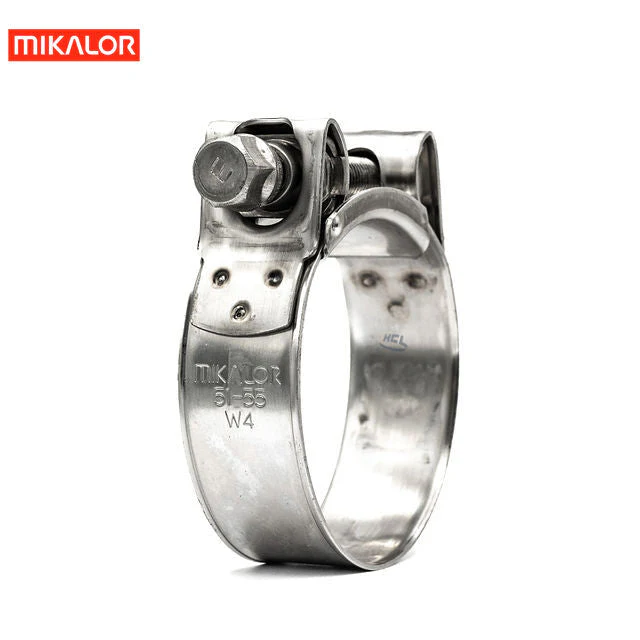

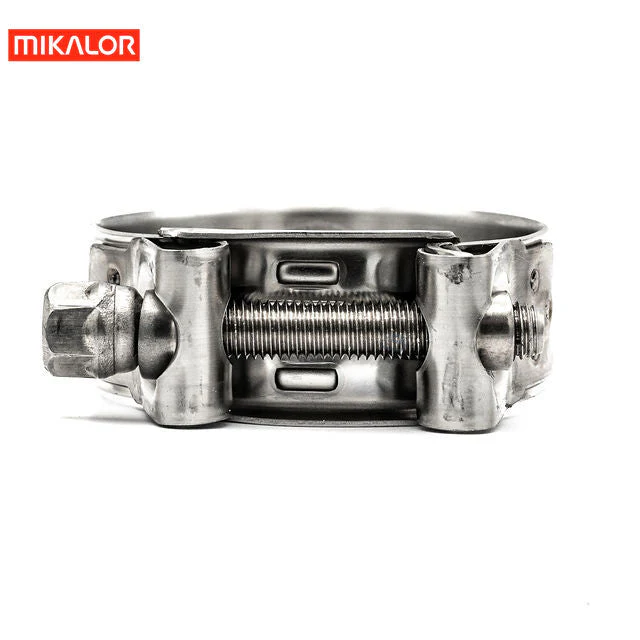

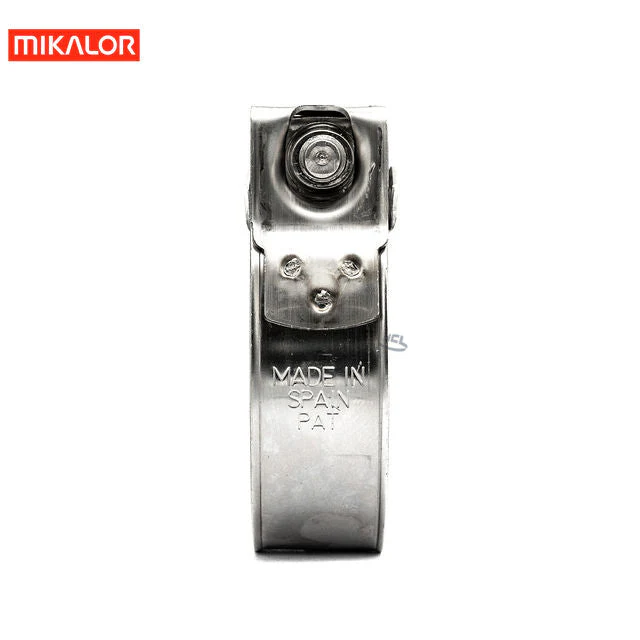

Supra Hose Clip - Mikalor 55-59mm - 304 Stainless Steel
Description
The Supra W4 clamp complies fully with the RoHs directive EU 20032/95/EC. The Stainless Steel bolt together with the captive nut and spacer system allow for clamping the most demanding of hose assemblies. Supra W4 is a full stainless steel clamp, designed for demanding applications where high corrosion resistance is vital.
Product Specifications
- Diameter Range (A) mm55.0 - 59.0
- Diameter Range (A) inch2.16 - 2.32
- Band Width (B) mm - inch20.0 - 0.79
- Band Thickness (C) mm - inch0.8 - 0.031
- Maximum Torque Setting Nm16.0
- Maximum Pressure bars36.0
- Screw mm A/F11.0
- Band/Housing Material W4 304SS
- Screw Material W4 304SS
- Brand Supra
- Manufactured By Mikalor
- Country of ManufactureSpain
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Swivel Bridge enables mounting without having to remove Hose
- Beveled edges protect the hose from damage
- High Strength Bol & nut/spacer system
- Proven brand recognised worldwide
$8.42
Supra Hose Clip - Mikalor 55-59mm - 304 Stainless Steel—
$8.42
