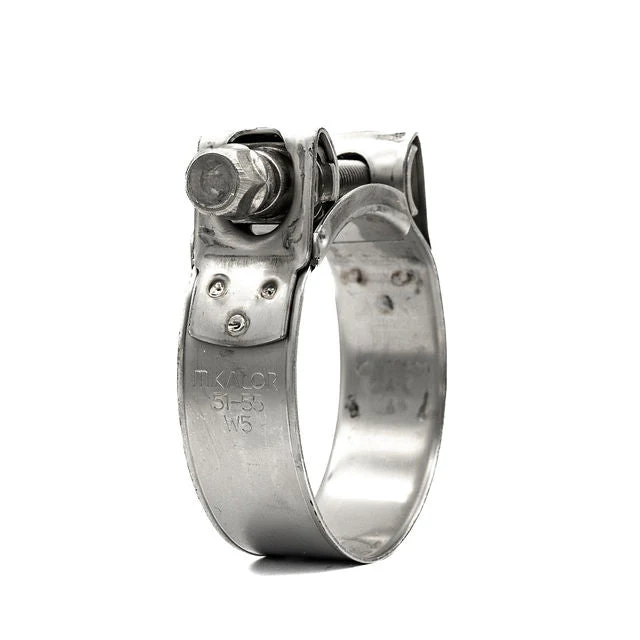

Product image 1

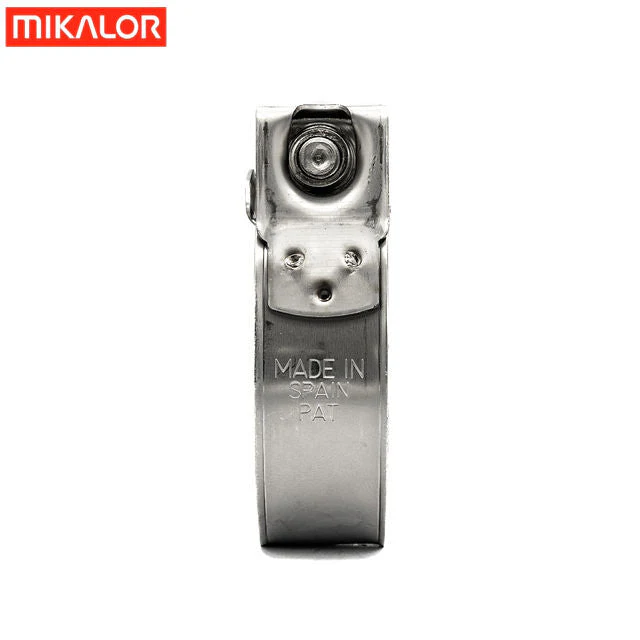

Product image 2

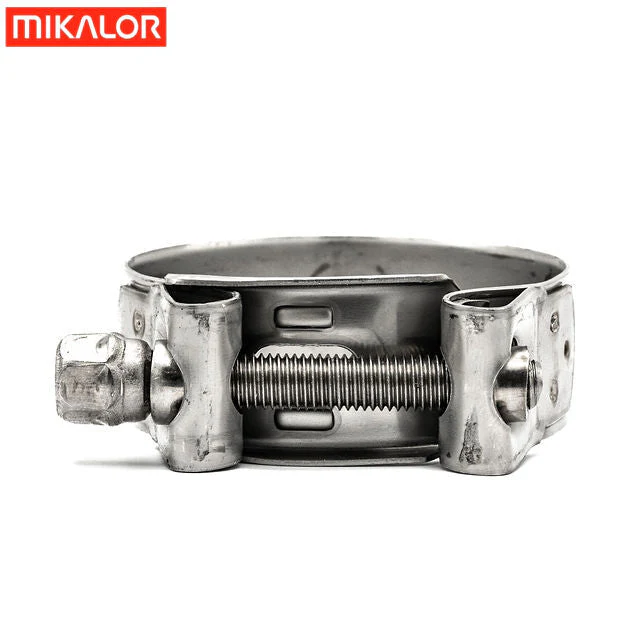

Product image 3

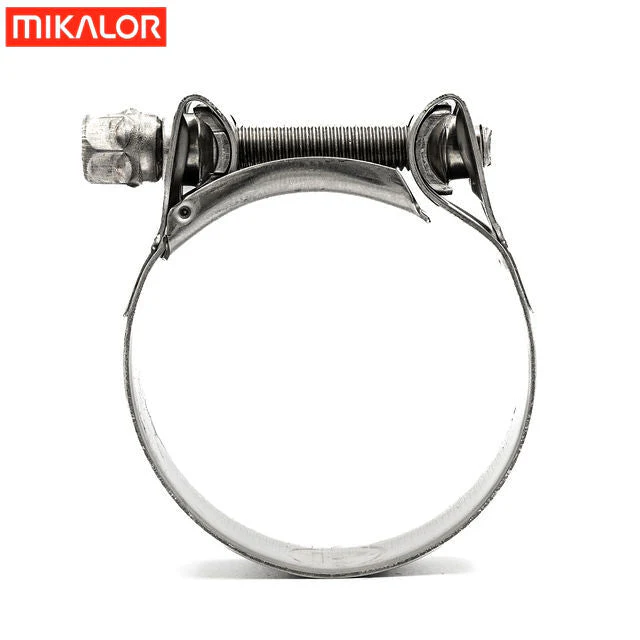

Product image 4

Supra Hose Clamp - Mikalor 27-29mm - 316 Stainless Steel

Description

The Supra W5 clamp complies fully with the RoHs directive EU 20032/95/EC. The Stainless Steel bolt together with the captive nut and spacer system allow for clamping the most demanding of hose assemblies. Supra W5 is a full stainless steel clamp, designed for marine environments where high corrosion resistance is vital.

Downloads

Product Specifications

  • Diameter Range (A) mm27.0 - 29.0
  • Diameter Range (A) inch1.06 - 1.14
  • Band Width (B) mm - inch18.0 - 0.71
  • Band Thickness (C) mm - inch0.6 - 0.024
  • Maximum Torque Setting Nm10.0
  • Maximum Pressure bars45.0
  • Screw mm A/F8.0
  • Band/Housing Material W5 316SS
  • Screw Material W5 316SS
  • Brand Supra
  • Manufactured By Mikalor
  • Country of ManufactureSpain
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Swivel Bridge enables mounting without having to remove Hose
  • Bevelled edges protect the hose from damage
  • High Strength Bol & nut/spacer system
  • Proven brand recognised worldwide
