Supra Constant Tension Clamp - 304SS - Dia=79-85mm
Description

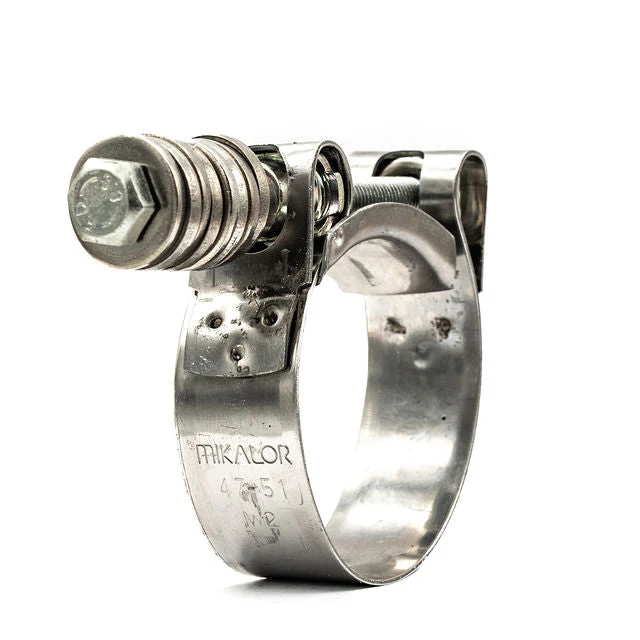

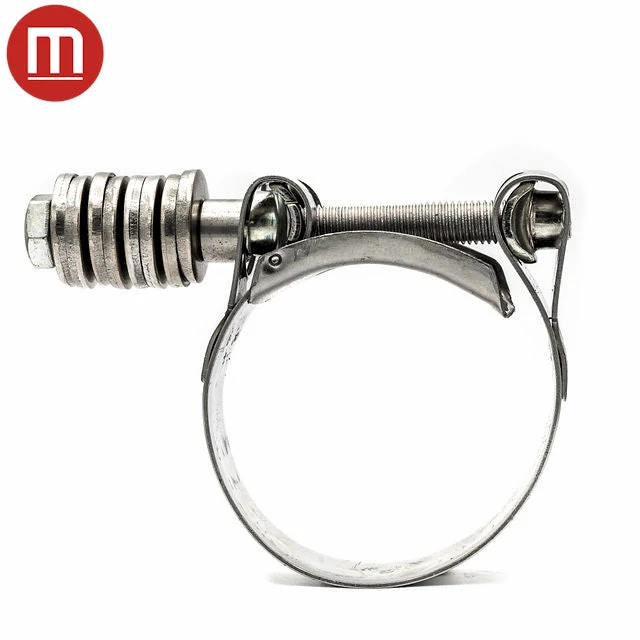

The Supra CT W4 clamp incorporates a bespoke bolt and a series of conical washers to the already outstanding Supra W4 clamp. This specialized version of the Supra W4 clamp is used in applications subject to vibration and/or great variations in temperature which can cause the components of a hose assembly to expand and contract. Thanks to the spring washer system, the Supra CT maintains constant pressure around the hose despite variations in temperature or vibration.
Downloads
Product Specifications
- Diameter Range (A) mm79.0 - 85.0
- Diameter Range (A) inch3.11 - 3.35
- Band Width (B) mm - inch25.0 - 0.98
- Maximum Torque Setting Nm25.0
- Maximum Pressure bars28.0
- Screw mm A/FM8
- Max Tightening Speed RPM540 ±5
- Corrosion72 HOURS SALT SPRAY (ASTM B-117)
- Band/Housing Material 304 Stainless Steel
- Washers and TrunnionsStainless Steel AISI-304
- Screw Material 8.8 Grade Steel
- Manufactured According toDIN3017
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
