Spring Band Hose Clamp - Rotor - 29.3-34.5mm - Steel

Product image 1
Product image 2
Product image 3
Product image 4

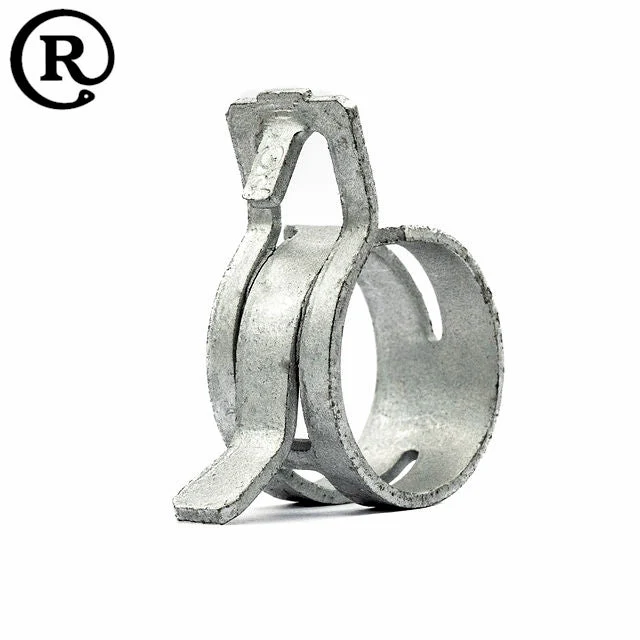

Spring Band Hose Clamp - Rotor - 29.3-34.5mm - Steel

Description

Rotor Spring Band Clamps are self-tensioning sealing components, which ensure a leak-free sealing of hose/spigot joints. Utilizing austempered, high-tensile chrome-vanadium spring steel, the final product indicates great flexibility and strength, ensuring a reliable, leak-proof connection of a hose to a fitting. Once the Rotor Hose clamp is installed on the hose joint, there will not be any need to re-torque or re-adjust the clamp over time (compared to a typical screw type clamp).

Downloads

Product Specifications

      • Diameter Range (A) mm29.3 - 34.5
      • Diameter Range (A) inch1.15 - 1.36
      • Band Width (B) mm - inch15.0 - 0.59
      • Band Thickness (C) mm - inch1.7 - 0.068
      • Material SAE 1074 - material code ST
      • Colour Silver
      • Brand CTB
      • Manufactured byRotor Clip Inc.
      • Hazardous Goods No
      • RoHS Compliant Yes

Features

  • Self Tightening and Sealing
  • Almost constant clamping force
  • Adapt to changing characteristics of Hose
  • Minimal Leak Path
$0.28

Original: $0.79

-65%
Spring Band Hose Clamp - Rotor - 29.3-34.5mm - Steel—

$0.79

$0.28

Product Information

Shipping & Returns

Description

Description

Rotor Spring Band Clamps are self-tensioning sealing components, which ensure a leak-free sealing of hose/spigot joints. Utilizing austempered, high-tensile chrome-vanadium spring steel, the final product indicates great flexibility and strength, ensuring a reliable, leak-proof connection of a hose to a fitting. Once the Rotor Hose clamp is installed on the hose joint, there will not be any need to re-torque or re-adjust the clamp over time (compared to a typical screw type clamp).

Downloads

Product Specifications

      • Diameter Range (A) mm29.3 - 34.5
      • Diameter Range (A) inch1.15 - 1.36
      • Band Width (B) mm - inch15.0 - 0.59
      • Band Thickness (C) mm - inch1.7 - 0.068
      • Material SAE 1074 - material code ST
      • Colour Silver
      • Brand CTB
      • Manufactured byRotor Clip Inc.
      • Hazardous Goods No
      • RoHS Compliant Yes

Features

  • Self Tightening and Sealing
  • Almost constant clamping force
  • Adapt to changing characteristics of Hose
  • Minimal Leak Path
