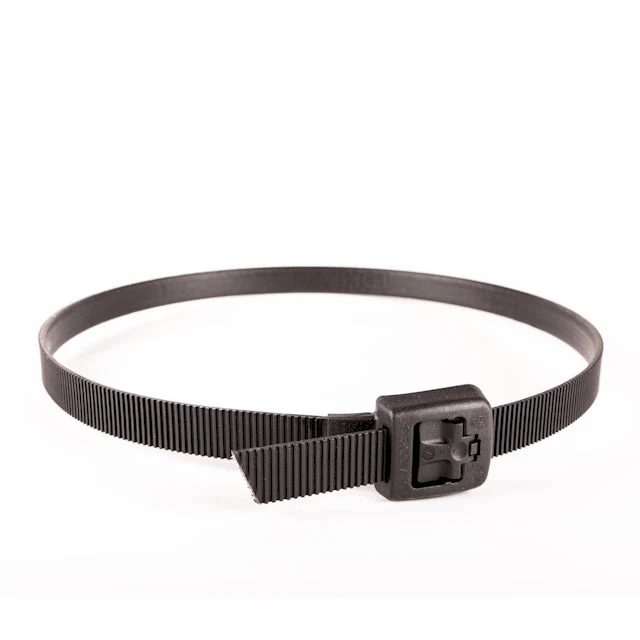

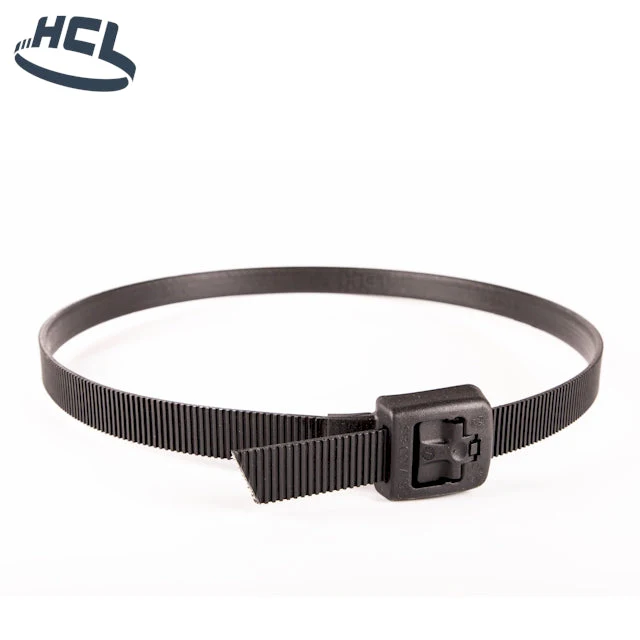

Smart Band Compact PPS 19mm wide 1000mm (39inch) Length
Description
The new Smart® Band Compact Banding System is an exciting step forward in the evolution of the Smart® Band range. It combines the best features of both the Smart® Tie and the Smart® Band Hybrid systems to create a superior product.
The Smart® Band Compact reduces the size of the Hybrid buckle by over 60% allowing it to be installed on applications as low as 100mm in diameter. Yet unlike the Smart® Tie it contains glass fibre reinforced yarn allowing it to maintain the superior strength, retention and relaxation features of the Hybrid system.
Downloads
Product Specifications
- Compact Strap Width mm - in19.0 - 0.75
- Max System Strength kgf - lbf1070 - 2360
- Compact Strap Length mm - inch1000.0 - 39.37
- Minimum Diameter mm - inch100.0 - 4.0
- Max Temp Resistance °C - °F175 - 347
- Flammability RatingV-0
- Tie Material PPS
- Tool Compatibility SM-FT-2000-19/SM-FT-1000-19/SM-FT-3000-19
- BrandHCL
- Country of Manufacture UK
- Hazardous GoodsNo
- RoHS CompliantYes
Features
- High Strength
- Safe and Easy to Fit
- Non-Corrosive
- Suitable for Long Life Subsea use
- High Temperature Resistance
