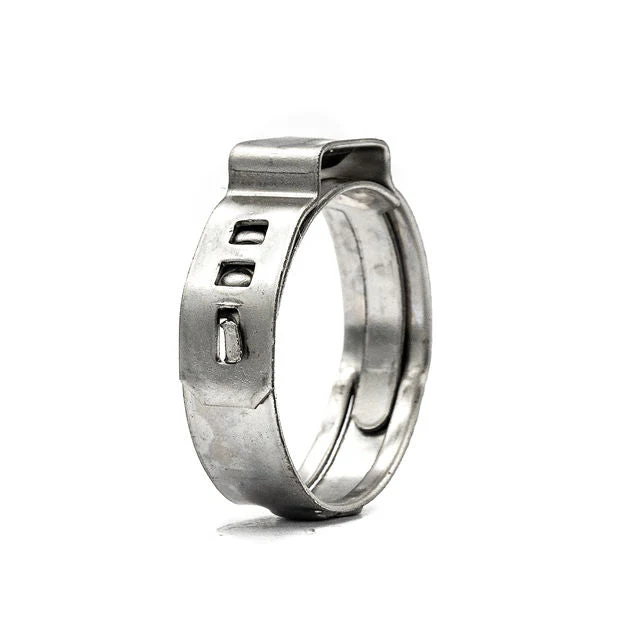

Single Ear Hose Clamp - Zero Leak - 7.8-9.5mm - 304SS

Product image 1
Product image 2
Product image 3
Product image 4

Single Ear Hose Clamp - Zero Leak - 7.8-9.5mm - 304SS

Description

HCL’s Zero Leak Ear clamp (O-Clip) is ideal for rubber and PVC hoses. The steel hose clamp forms a complete circle, removing the possibility of leakage. It is quick and easy to assemble, has a low profile design and is manufactured from corrosion resistant Stainless Steel 304 or W4. The Zero leak metal hose clip is also known sometimes as a low profile hose clamp.

Downloads

Product Specifications

  • Diameter Range (A) mm7.8 - 9.5
  • Diameter Range (A) inch0.31 - 0.37
  • Band Width (B) mm - inch5.0 - 0.20
  • Band Thickness (C) mm - inch0.5 - 0.02
  • Band/Housing Material W4 Stainless Steel AISI 304
  • Manufactured By Clamp (Tridon)
  • Manufactured According toDIN3017
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Manufactured to DIN3017 Standard
  • Smooth Underside
  • Bevelled Edges Protect Hose
  • Exclusive Housing Design
$0.21

Original: $0.59

-64%
Single Ear Hose Clamp - Zero Leak - 7.8-9.5mm - 304SS—

$0.59

$0.21

Product Information

Shipping & Returns

Description

Description

HCL’s Zero Leak Ear clamp (O-Clip) is ideal for rubber and PVC hoses. The steel hose clamp forms a complete circle, removing the possibility of leakage. It is quick and easy to assemble, has a low profile design and is manufactured from corrosion resistant Stainless Steel 304 or W4. The Zero leak metal hose clip is also known sometimes as a low profile hose clamp.

Downloads

Product Specifications

  • Diameter Range (A) mm7.8 - 9.5
  • Diameter Range (A) inch0.31 - 0.37
  • Band Width (B) mm - inch5.0 - 0.20
  • Band Thickness (C) mm - inch0.5 - 0.02
  • Band/Housing Material W4 Stainless Steel AISI 304
  • Manufactured By Clamp (Tridon)
  • Manufactured According toDIN3017
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Manufactured to DIN3017 Standard
  • Smooth Underside
  • Bevelled Edges Protect Hose
  • Exclusive Housing Design
