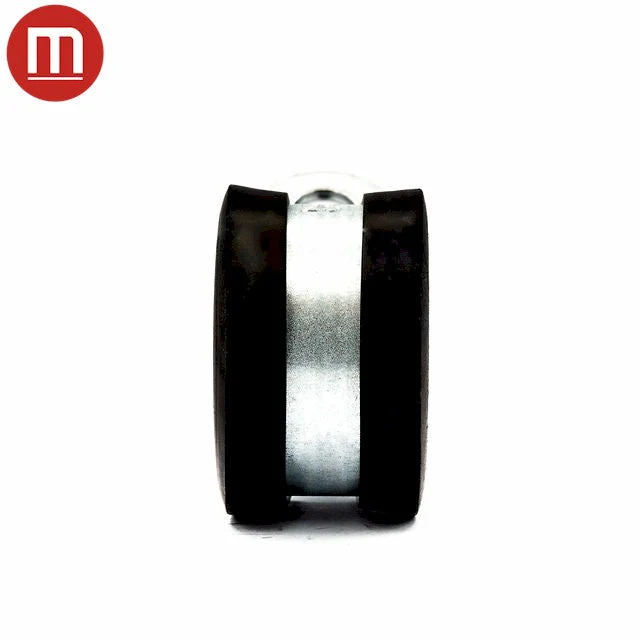

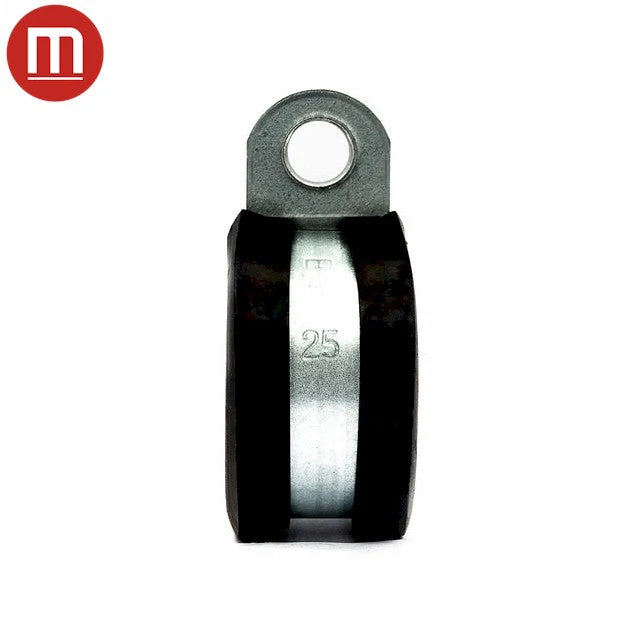

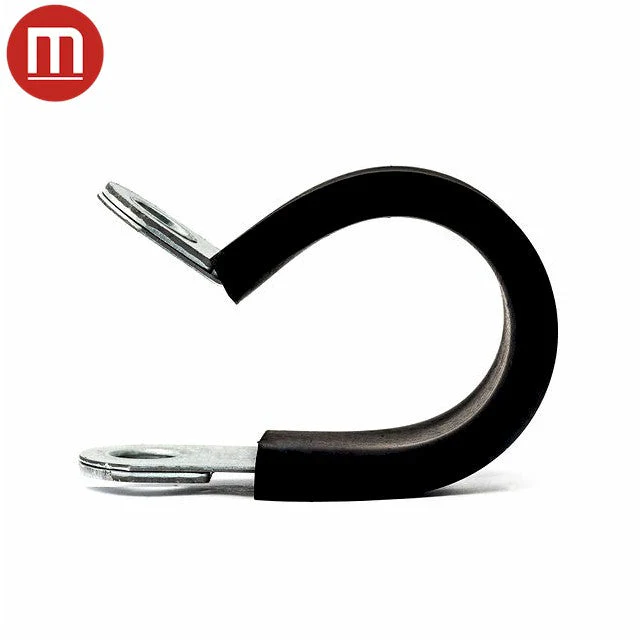

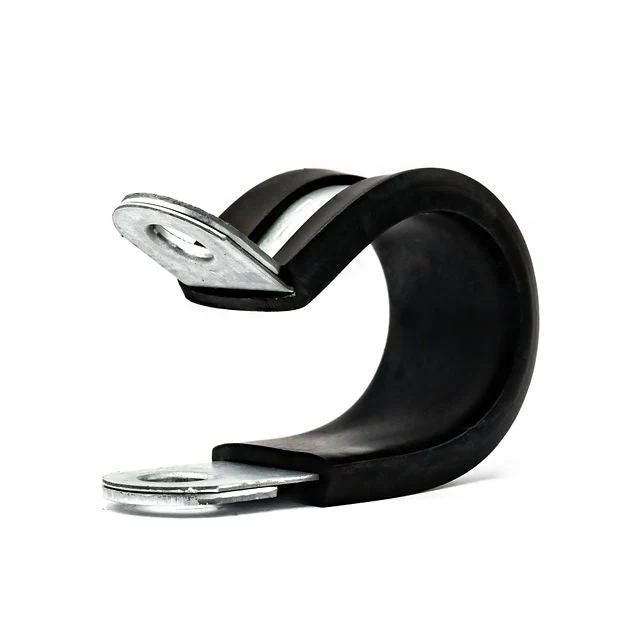

Rubber Lined P Clips - 304SS - W: 20mm - Max Dia: 48mm
Description
HCL's Zinc Plated Steel Rubber lined P clips have an elastomer sheathing that absorbs jolts and vibrations, preventing damage to cables and hoses; and also acts as an excellent electrical insulator. The PK series Rubber lined P Clip is manufactured in accordance with DIN3016, incorporating a reinforced fastening hole and is made from Zinc Plated Steel.Â
Product Specifications
- Max diameter mm - inch48.0- 1.89
- Offset distance mm - inch14.5 - 0.57
- Hole diameter mm - inch8.4 - 0.33
- Band Thickness mm - inch1.0 - 0.04
- Rubber width mm -inch25.0 - 0.98
- Manufactured According toDIN3016
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Rubber Lining prevents damage to hoses
- Reinforced fastening hole
- Corrosion resistant
Original: $1.79
-65%$1.79
$0.63Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Description
HCL's Zinc Plated Steel Rubber lined P clips have an elastomer sheathing that absorbs jolts and vibrations, preventing damage to cables and hoses; and also acts as an excellent electrical insulator. The PK series Rubber lined P Clip is manufactured in accordance with DIN3016, incorporating a reinforced fastening hole and is made from Zinc Plated Steel.Â
Product Specifications
- Max diameter mm - inch48.0- 1.89
- Offset distance mm - inch14.5 - 0.57
- Hole diameter mm - inch8.4 - 0.33
- Band Thickness mm - inch1.0 - 0.04
- Rubber width mm -inch25.0 - 0.98
- Manufactured According toDIN3016
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Rubber Lining prevents damage to hoses
- Reinforced fastening hole
- Corrosion resistant
