Mini Worm Drive Hose Clip - Oetiker - 38-49mm -304SS
Description

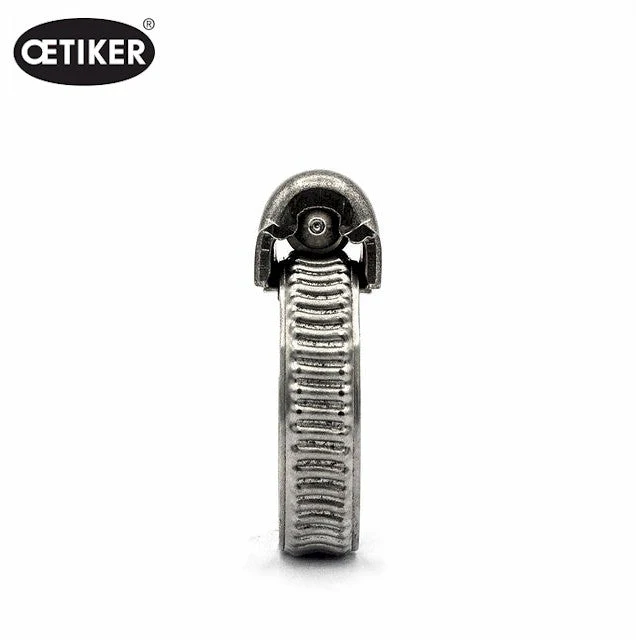

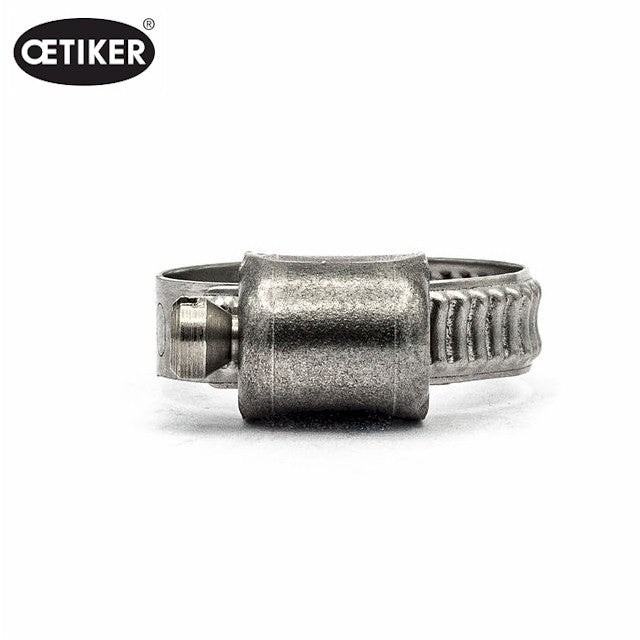

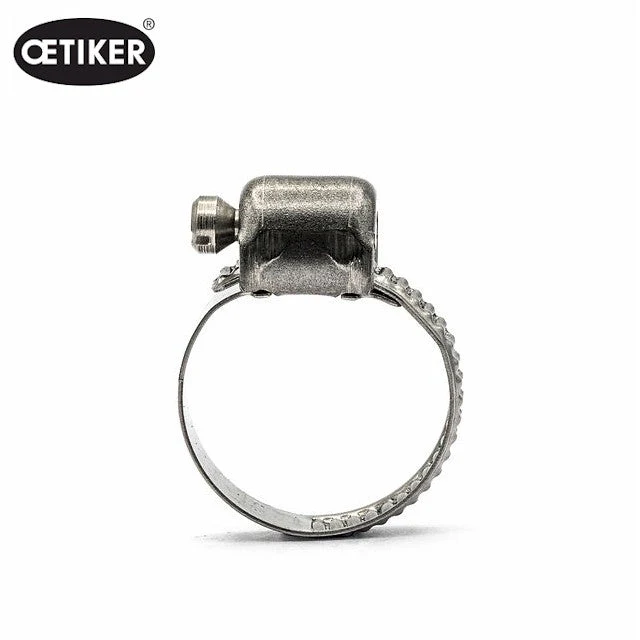

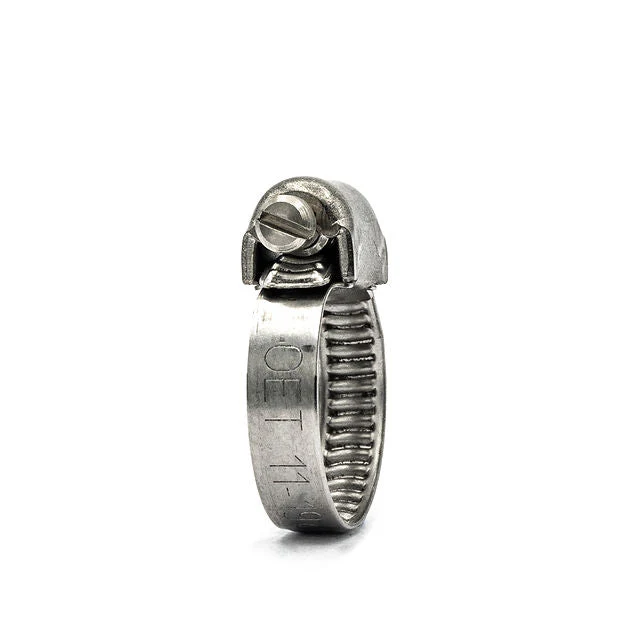

Oetiker Mini Worm Drive Clips are manufactured in 304 Stainless steel and its compact design means that the space requirements are minimal. These clips are ideal for fitting into applications where space is at a premium. The Mini worm drive clip features a cylindrical screw head which enables fast, simple and safe installation. In addition the clamp has an embossed band strip which reduces the risk of damage to the part being clamped.
Downloads
Product Specifications
- Diameter Range (A) mm38.0 - 49.0
- Diameter Range (A) inch1.50 - 1.93
- Band Width (B) mm - inch5.0 - 0.20
- Band Thickness (C) mm - inch0.40 - 0.02
- Screw mm A/F7.0
- Band/Housing Material W4 304SS
- Screw Material W4 304SS
- Manufactured By Oetiker
- Manufactured According toDIN3017
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
