Mikalor Worm Drive Hose Clamp - 80-100mm - ASFA S - 430SS - 12mm Wide
Description

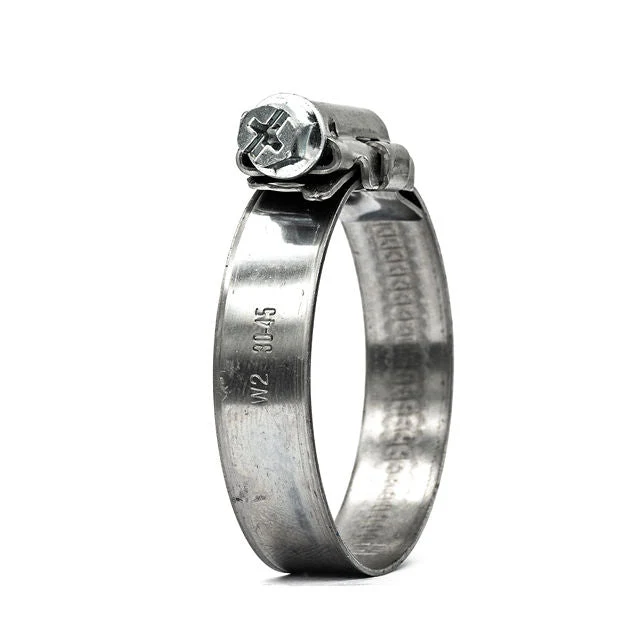

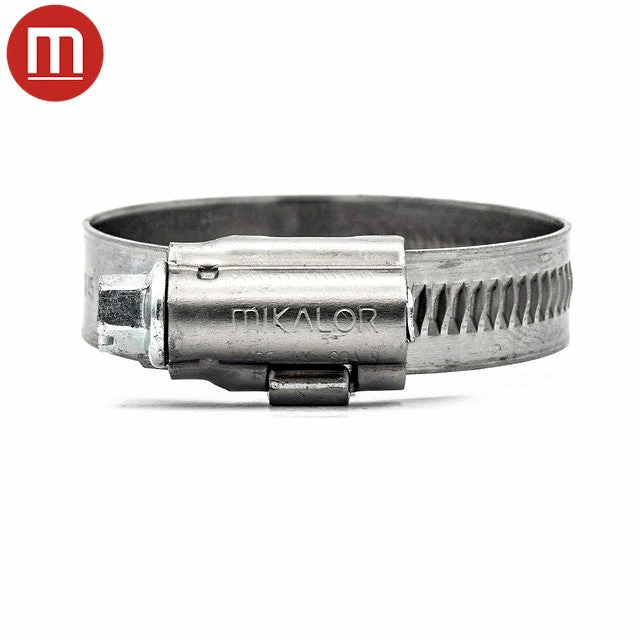

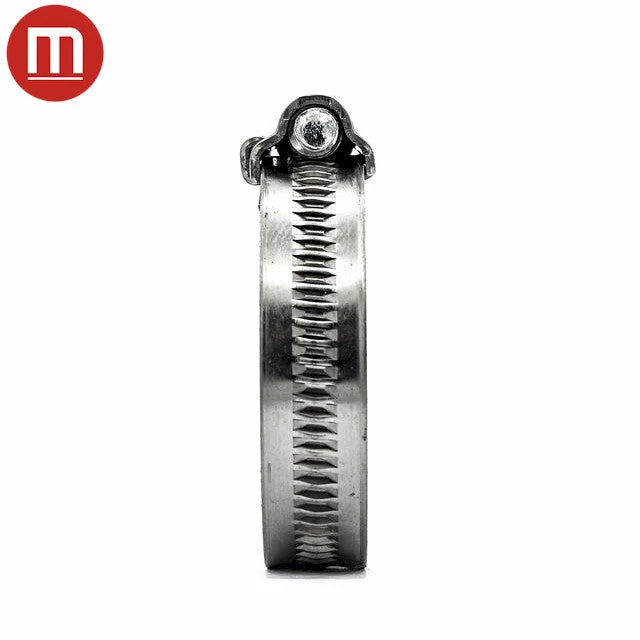

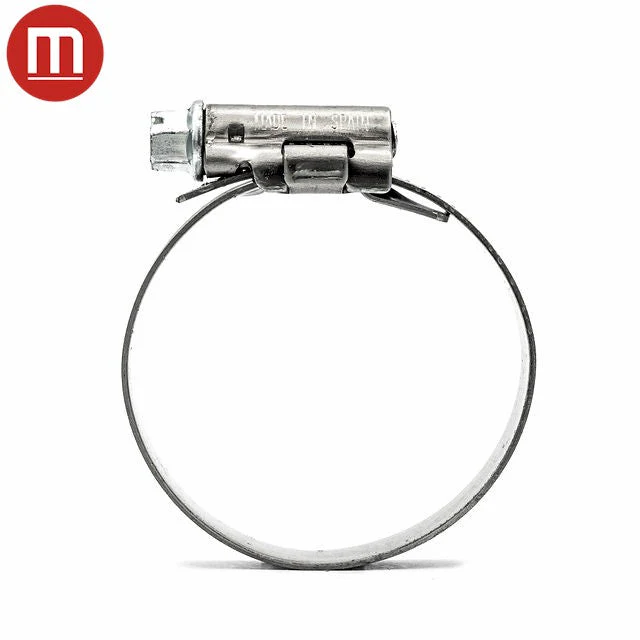

The ASFA S hose clip combines an innovative housing and a sturdy 12mm band which together make this a high-performance hose clip. The cold-formed stamped band thread, smoothed on the underside, combined with bevelled band edges protects the hose from any damage. The (AISI-430) Stainless steel finish of the band and housing make this an extremely attractive clip. * The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling. Patented Worldwide.
Video
Downloads
Product Specifications
- Diameter Range (A) mm80.0 - 100.0
- Diameter Range (A) inch3.15 - 3.94
- Band Width (B) mm - inch12.2 - 0.48
- Max torque6.80
- Max pressure14
- Band MaterialW2 430SS
- ScrewW1 Mild Zinc Plated Steel
- Material W1 Mild Zinc Plated Steel
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- High Performance Hose Clip
