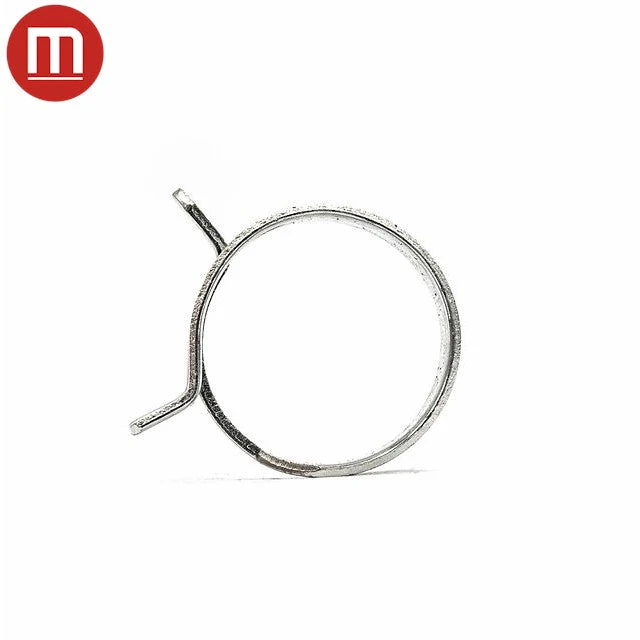

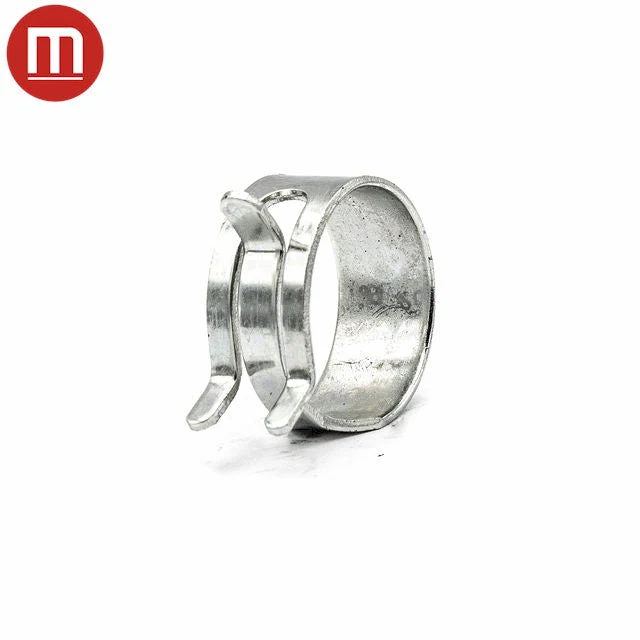

Mikalor Spring Clip W1 Zinc Plated Dia 13.5mm - 16.0mm

Product image 1
Product image 2
Product image 3
Product image 4

Mikalor Spring Clip W1 Zinc Plated Dia 13.5mm - 16.0mm

Description

Spring clips are designed to distribute pressure uniformly around the application zone, thanks to the material used in their manufacture.

Their use is recommended when the hose is subject to rapid changes in temperature which can cause expansion and contraction of the materials used in the assembly.

These clips are quick and easy to assemble and can even be mounted manually in some cases, without the need for tools.

Downloads

Product Specifications

  • Min Diameter mm13.5
  • Min Diameter inch0.53
  • Max Diameter mm16.0
  • Max Diameter inch0.63
  • Optimal Diameter mm15
  • Optimal Diameter inch0.59
  • Band Width (B) mm - inch7.0 - 0.28
  • Band Thickness (C) mm - inch0.80 - 0.032
  • Band/Housing Material W1 Zinc Plated Steel
  • Bolt Material W1 Zinc Plated Steel
  • Manufactured By Mikalor
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Cost effective
  • Quick and easy to assemble
  • Cope with diametric changes in the Hose
