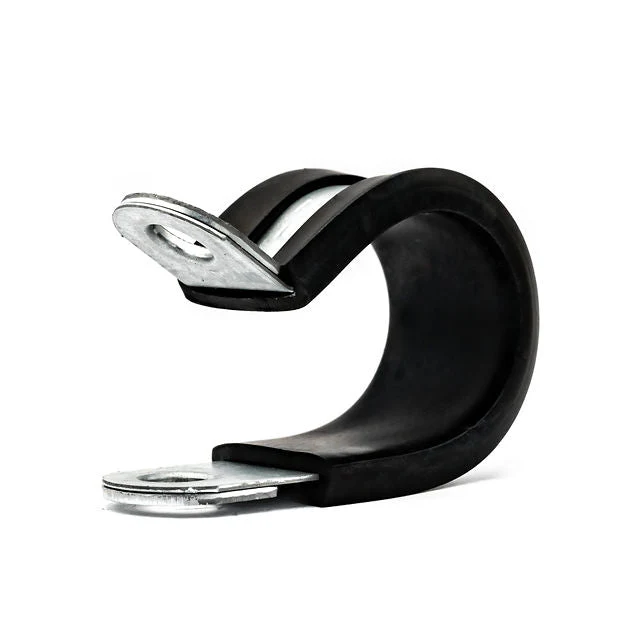

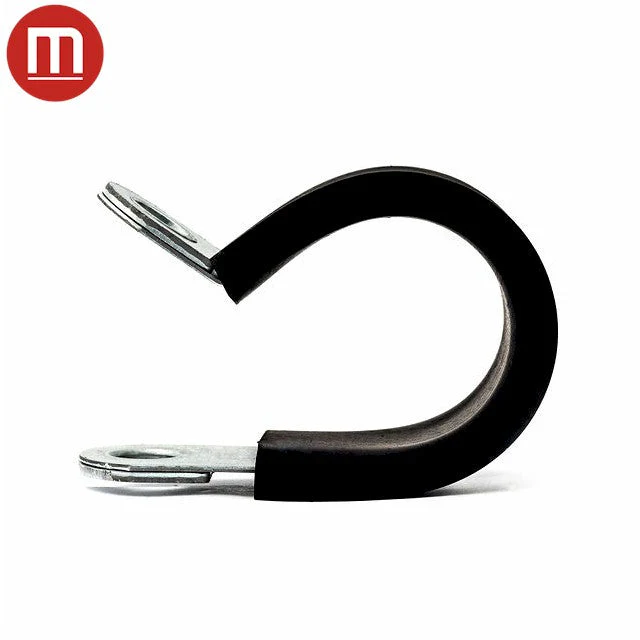

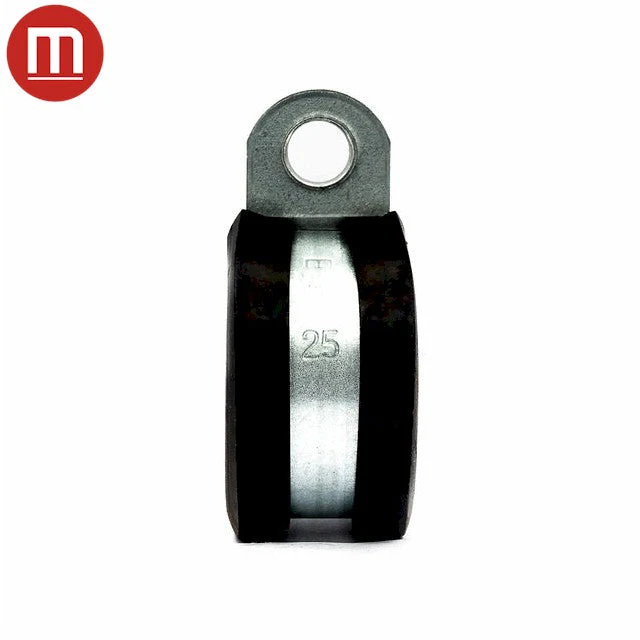

Metal P Clip (Rubber Lined) - Max Dia-55mm - Width-20mm
Description
HCLs Zinc Plated Steel Rubber lined P clips have an elastomer sheathing that absorbs jolts and vibrations, preventing damage to cables and hoses; and also acts as an excellent electrical insulator. The PK series Rubber lined P Clip is manufactured in accordance with DIN3016, incorporating a reinforced fastening hole and is made from Zinc Plated Steel with 316SS available on request. This clip is ideal for general industrial applications and is manufactured in accordance with DIN3016.
Product Specifications
- Max diameter mm - inch55 - 2.17
- Offset distance mm - inch40.0 - 1.57
- Hole diameter mm - inch8.4 - 0.33
- Band Thickness mm - inch1.0 - 0.04
- Rubber width mm - inch24 - 0.94
- Manufactured According toDIN3017
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
Original: $3.20
-65%$3.20
$1.12Product Information
