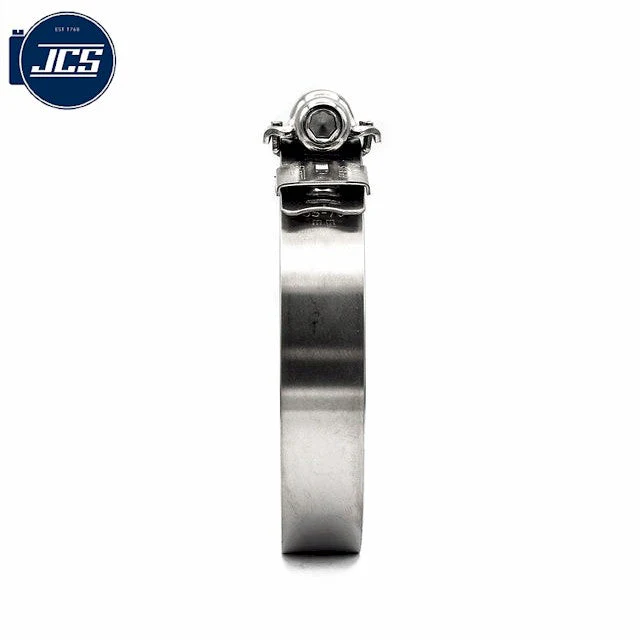

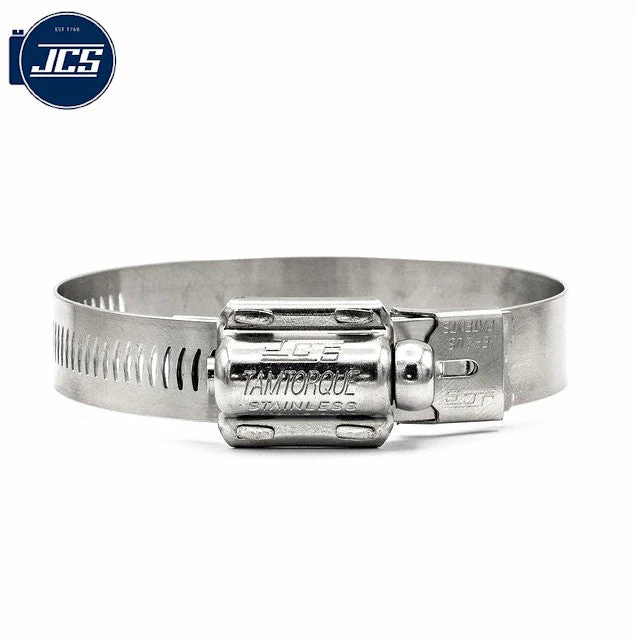

JCS Tamtorque Sign Clamp - W4 304SS - 100-130mm
Description
Tamper-Proof installation clamps for the secure and reliable fastening of all types of signage, street furniture and other mountable equipment to posts ranging from 55mm to 340mm in diameter. Manufactured from high strength stainless steel and with a hardened tamper-resistant screw featuring a unique recessed seven sided socket. Typical applications include the securing of road signs, advertising displays, street furniture and electronic systems such as PA systems and CCTV cameras.
Downloads
Product Specifications
- Diameter Range (A) mm100.0 - 130.0
- Diameter Range (A) inch3.94 - 5.12
- Band Width (B) mm - inch16.0 - 0.63
- Band Thickness (A) inch0.8 - 0.031
- Screw mm A/F7.0
- Band/Housing Material BS304-EN 1.4301
- Screw Material BS410-EN 1.4006
- BrandTamtorque
- Manufactured By JCS
- Manufactured According toDIN3017
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
Fitting Tools
 |
Ā |
Tamtorque Driver SKU: MT-TT-DR A screwdriver and T-bar combination tool with non-removable Tamtorque bit. |
| Ā | Ā | Ā |
 |
Ā |
Tamtorque Ratchet Spanner & Driver SKU:Ā A Ratchet Spanner & Tamtorque Driver for Tamtorque Sign Clamps. |
| Ā | Ā | Ā |
 |
Ā |
Tamtorque Tool Bit (2 per bag) 1/4" x 50mm SKU:Ā Tamtorque Tool Bit (2 per bag) 1/4" x 50mm. To Install Tamtorque Worm Drive Sign Clamps |
| Ā | Ā | Ā |
 |
Ā |
Tamtorque Long Reach Power Bit 1/4" x170mm SKU:Ā 1āāāāā4ā hex x 170mm long bit for direct insertion into cordless drill/drivers. |
| Ā | Ā | Ā |
 |
Ā |
Tamtorque 1/4" Drive Socket Bit SKU:Ā 1āāāāā4ā hex x 170mm long bit for direct insertion into cordless drill/drivers. |
